Pontoons - Pump & Stirrer

                      *Design Registration #28800




Pumps, Stirrers & Adaptors not included.

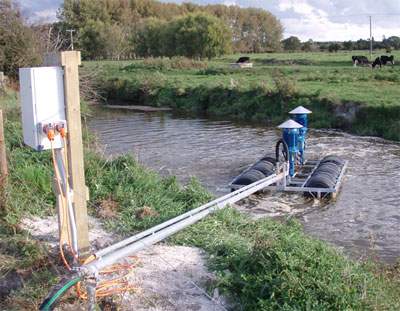

Six Drum Pontoon with Electric Pump 15 hp & Stirrer 10 hp

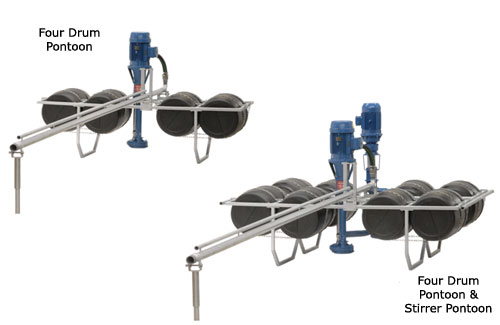

Four Drum & Stirrer Pontoon with Electric Pump 15 hp & Stirrer 10 hp

  • An economical simple means of floating an effluent pump or stirrer on an effluent pond or large sump.

  • Easy to relocate around the pond to reduce sludge buildup.

  • New drums of strong design manufactured from virgin materials.  No second hand or reject drums which collapse and sink.

  • Pontoons are easily removed from the pivot point and pulled to edge of pond for pump and stirrer maintenance.  More easily accessible for maintenance than other pontoon designs.

  • More stable with greater buoyancy than other pontoon designs with a similar number of drums.  Easily supports the weight of a serviceman without sinking or capsizing.

  • A 76 mm OD x 6.5 m or 8.0 m long discharge pipe extends from the pontoon to the bank.  Modular construction allows up to 15 m long discharge pipes to be used.
  • Modular construction to suit pump, stirrer and pond size.

  • A 34 mm ID ancillary pipeline attached to the top of the discharge pipe carries the power cable from the bank to the pump or stirrer.

  • Fits all common types of effluent pumps and stirrers.
    • o

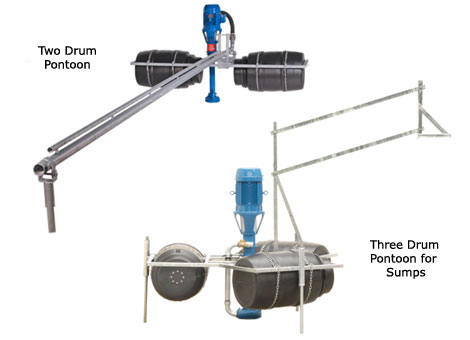

    		Two drum pontoon generally used for pumps up to 7.5 hp
    o Four drum pontoon generally used for pumps 10 hp and greater or if fitted with an 8.0 m long discharge pipe.
    o

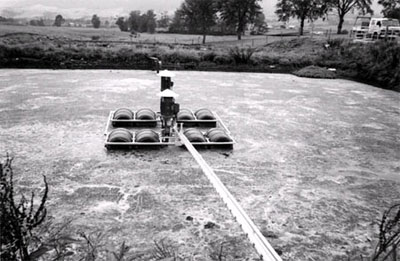

    		Six drum pontoon generally used for a combination of a pump and stirrer.

  • Support legs to prevent stirrer propeller from contacting the bottom of the sump or pond.

  • Robust construction and hot dip galvanised for durability.

Code
Pontoons for Sumps & Storage Ponds
(minimum sump or pond size 8 m x 4 m)
15150 Pontoon 2 Drum c/w 6.5m Discharge Pipe (Pump only)
15151 Pontoon 4 Drum c/w 6.5m Discharge Pipe (Pump only)
15152 Pontoon 4 Drum c/w 8.0m Discharge Pipe (Pump only)
15153 Pontoon 6 Drum c/w 6.5m Discharge Pipe & Legs (Pump & Stirrer)
15154 Pontoon 6 Drum c/w 8.0m Discharge Pipe & Legs (Pump & Stirrer)
15155 Pontoon 8 Drum c/w 6.5m Discharge Pipe (Pump & Stirrer)
15156 Pontoon 8 Drum c/w 8.0m Discharge Pipe (Pump & Stirrer)
15100 Stirrer Pontoon 4 Drum c/w Connecting Rails and Legs
15102 Legs only for 4 drum pontoon (optional)

Code
Pontoons for Sumps
(minimum sump size 3 m dia.)
12320 Three Drum Pontoon c/w Hinge Assembly

For Pontoon Adaptors, refer to Adaptors Section
