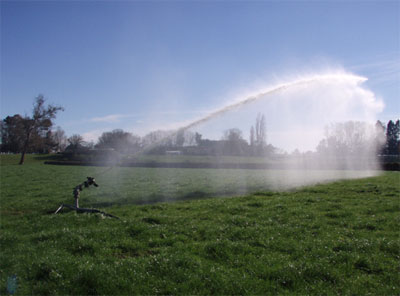

- Ideal for spreading effluent onto flat land or sidlings where travelling irrigators are unsuitable.
- Economical and ideal for use in any size herd.
- A PTO Pump and a Raingun on a Skid are often used by Farmers with multiple farms or shared by neighbours. Some Farmers even hire out their PTO Pump and Raingun.
- The unique triangular shape reduces potential for accidental damage with gateways and other obstacles.
- Easily towed around the farm or transported on a ute or trailer between farms.
- Adjustable part circle or full circle arc so ideal for spreading effluent close to boundaries, roads, streams, drain or other obstacles.
- High flow saves time and labour 25-120 m³/hr depending on nozzle size and pressure available.
- Large wetted diameter 74 137 m. Typically the Ecostream Raingun would apply 25mm in 2 - 4 hours before requiring shifting on flat contours.
- Lowest pressure Raingun available (will even operate at less than 20 psi).
- Requires a minimum of 11 kW (15 hp) electric motor driven effluent pump or a 40 hp Tractor and PTO Pump.
- Robust construction and hot dip galvanized for durability.
- Typical draghoses used are 63, 75 and 90 MDPE or layflat.
- Inlet connection is a 3” BSP male thread.
| Raingun Performance Data |
| Pressure |
20 mm
Nozzle |
22.5 mm
Nozzle |
25 mm
Nozzle
|
27.5 mm
Nozzle |
| kPa |
psi |
Flow
l/s |
Radius
m |
Flow
l/s
|
Radius
m
|
Flow
l/s |
Radius
m |
Flow
l/s
|
Radius
m |
| 300 |
44 |
7.2 |
37.2 |
9.2 |
38.9 |
11.3
|
41.5 |
13.7 |
43.5 |
| 350 |
51 |
7.8 |
41.2 |
9.9 |
43.8 |
12.2 |
46.5 |
14.8 |
48.7 |
| 400 |
58 |
8.4 |
44.2 |
10.6 |
47.3 |
13.1 |
49.9 |
15.8 |
52.5 |
| 450 |
65 |
8.9 |
46.0 |
11.2 |
49.4 |
13.9 |
52.4 |
16.8 |
55.2 |
| 500 |
73 |
9.4
|
47.5 |
11.8 |
51.0 |
14.6 |
54.0 |
17.7 |
57.0 |
| 550 |
80 |
9.8 |
49.0 |
12.4 |
52.5 |
15.3 |
55.4 |
18.5 |
58.5 |
| 600 |
87 |
10.2 |
50.0 |
13.0 |
53.4 |
16.0 |
56.5 |
19.4 |
59.7 |
| 650 |
94 |
10.7 |
50.5 |
13.5 |
54.0 |
16.7 |
57.4 |
20.2 |
60.7 |
| 700 |
102 |
11.0 |
51.1 |
14.0 |
54.6 |
17.3 |
57.9 |
21.0 |
61.3 |
| Raingun Performance Data |
| Pressure |
30 mm
Nozzle |
32.5 mm
Nozzle |
35 mm
Nozzle
|
| kPa |
psi |
Flow
l/s |
Radius
m |
Radius
m
|
Flow
l/s |
Radius
m |
Flow
l/s
|
| 300 |
44 |
16.3 |
45.7 |
19.1 |
47.5 |
22.2 |
49.5 |
| 350 |
51 |
17.6 |
51.3 |
20.7 |
53.6 |
24.0 |
56.0 |
| 400 |
58 |
18.8 |
55.2 |
22.1 |
57.9 |
25.6 |
60.2 |
| 450 |
65 |
20.0 |
57.8 |
23.4 |
60.5 |
27.2 |
62.8 |
| 500 |
73 |
21.0 |
60.0 |
24.7 |
62.5 |
28.6 |
64.9 |
| 550 |
80 |
22.1 |
61.5 |
25.9 |
63.9 |
30.0 |
66.3 |
| 600 |
87 |
23.0 |
62.5 |
27.0 |
65.0 |
31.4 |
67.3 |
| 650 |
94 |
24.0 |
63.3 |
28.1 |
65.7 |
32.6 |
68.0 |
| 700 |
102 |
24.9 |
63.9 |
29.2 |
66.2 |
33.9 |
68.5
|
| Code |
Description |
| 11100 |
Ecostream Raingun & Skid Assy |
| 11101 |
Ecostream Raingun Skid Only |
| 11150 |
Raingun Model 160 |

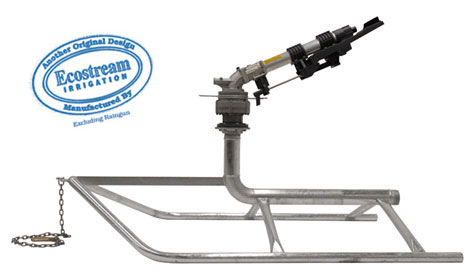

Ecostream Raingun & Skid
|
