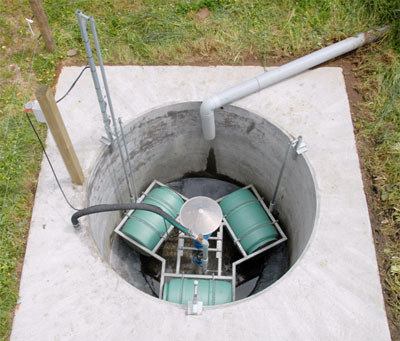

Effluent Sump 10000






  • Unique conical shaped internal base channels effluent directly to the pump suction preventing buildup of sludge and crusting, avoiding the need for a stirrer.

  • A sump capacity of approx. 10000 litres is ideal for larger herds or when using two or more yard hoses.

  • Ideal if the power supply to the dairy prevents simultaneous operation of the effluent pump and the milking plant, effluent can be stored until after milking before being pumped.

  • A stable and reliable effluent pump pontoon moves up and down guide rails.  Greater buoyancy than most other pontoon designs with a similar number of drums.  Easily supports the weight of a serviceman without sinking or capsizing.

  • Optional pump switching system.

  • Fits all common types of effluent pumps.

  • Modular concrete design provides for quick and easy installation.

  • Optional pump discharge assembly including air release valve, non return valve, pipe, hose and fittings.
  • Optional Safety Fence.

  • 10 years proven reliability and durability.

  • Dimensions 2600 mm dia. x 2800 mm high.  Approximate weight 4700 kg.

Code Description
12110 Concrete Sump 10000 x 2.5 m ID
12111 Conical Internal Base 10000
12140 Three Drum Pontoon c/w Guide Rail Assy & Pump Switching System 10000
12220 Safety Fence 10000 (optional)

For Sump 10000 Pump Adaptors, refer to Adaptors Section

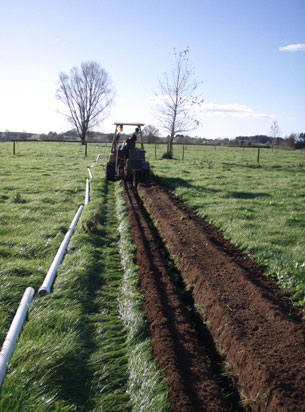

Chain Trencher
